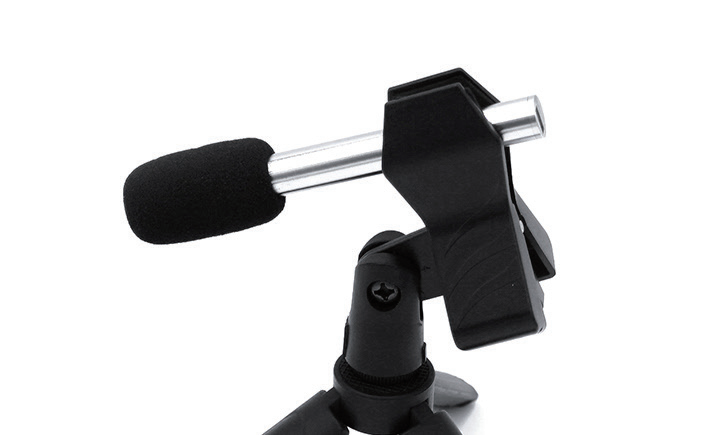

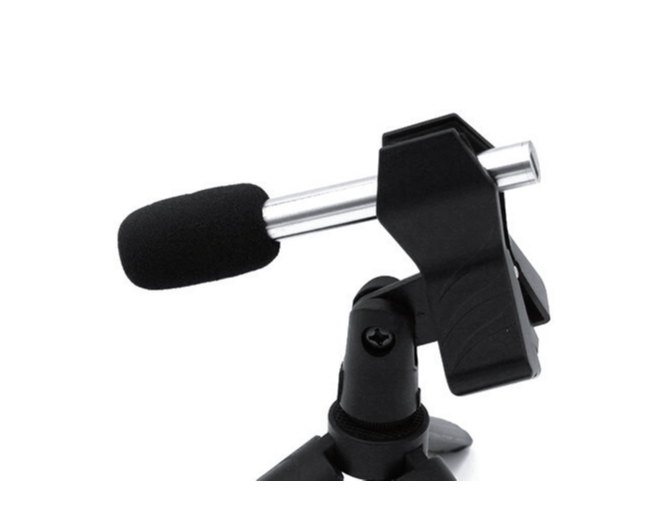

USB Microphone

MU2121 USB microphone integrates the microphone, preamplifier, 24 bit A/D, and USB interface. The measurement data is transmitted to PC or mobile end through USB cable, and high-performance noise measurement is carried out in conjunction with testing software.


Features
Features

·Direct power supply for PC or mobile devices without the need for additional power supply;

·Compatible with Windows/Android systems, plug and play, no additional driver installation required;

·Contains 2 channels, namely low sensitivity channel and high sensitivity channel, users can choose your own channel for use;

Performance parameter
Performance parameter
Type
MU2121
Sensitivity(mV/Pa)
50
Frequency Range (Hz)
20~20k
Application
Free Field
Polarization Voltage (V)
0
Dynamic Range
26dB(A)-126dB
Work Temp(℃)
-10~+65
Output Interface
USB(5V)orTypeC
Power Supply
USB
Length(mm)
118.5
Weight(g)
40
