Intrinsically Safe Microphone

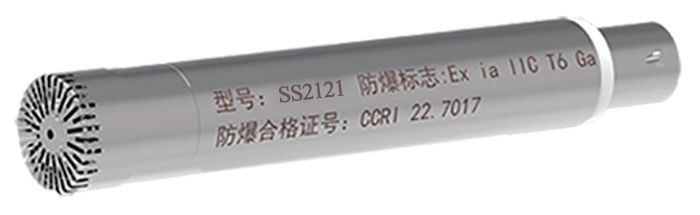

SS2121 measurement microphone is 1/2 inch high-quality prepolarized free field microphone, with preamplifier housing made of stainless steel material, suitable for acoustic testing requirements in various occasions. The microphone kit has obtained explosion-proof certificate issued by the Testing Center of Coal Science and Technology Research Institute Co., Ltd. It is suitable for all explosive gas environments except coal mine gas environments, and its explosion-proof mark is Ex ia IIC T6 Ga.

Performance parameter
Performance parameter
Type
SS2121
Sensitivity(mV/Pa)
50
Frequency Range (Hz)
20~20k
Application
Free Field
Polarization Voltage (V)
0
Dynamic Range
16dB(A)-136dB
Work Temp(℃)
-30~+70
Output Interface
BNC
Power Supply
IEPE(2~20mA)
Length(mm)
85.4
Weight(g)
35
