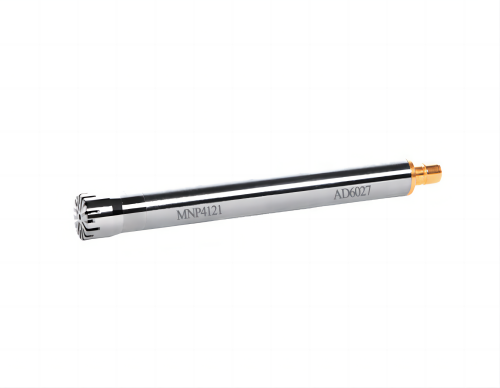

MNP4121 microphone

MNP4121 is 1/4 inch free field measurement microphone that complies with the IEC Type 1standard. The indicators of  MN4121 are controlled within the 80% limit of the IEC standard, and the frequency response consistency is excellent. All  microphones undergo rigorous environmental aging tests to ensure stability

Performance parameter
Performance parameter
Type
MNP4121
Sensitivity ((mV/Pa)
4
Frequency Range (Hz)
10-40k
Application
Free Field
Polarization Voltage(V)
0
Dynamic Range(dB)
34-164
Dynamic Range(℃)
-40~+80
Output Interface
SMB
Power Supply
IEPE (2~20mA)
Length(mm)
67.8
Weight(g)
9
