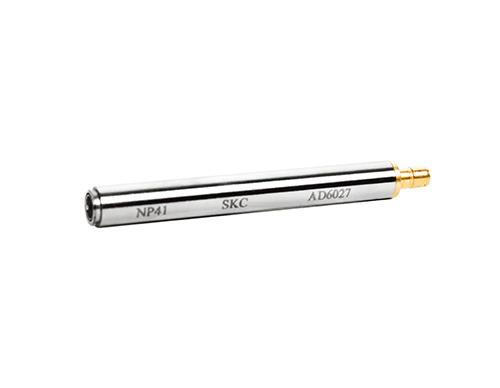

NP4121-S 1/4inch Preamplifier

The preamplifier has the characteristics of high input impedance, low output impedance, low noise and a wide frequency response range. It is applicable to many occasions such as electroacoustic tester systems and multi-channel noise analysis. The flat frequency response ensures high-precision acoustic measurements.

Performance parameter
Performance parameter
Diameter
1/4 inch
Frequency Range (Ref:250Hz,0.2dB)
5Hz-100kHz
Attenuation(10Hz-100kHz)
<0.5dB
Input Impedance
>5GΩ
Output Impedance
<110Ω
Electrical Noise
A Weighting <3.0 μV 20Hz-20kHz <6.0 μV
Max Output Voltage
8.0 Vrms
Power Supply
IEPE(2-20)mA
Work Temperature
-40℃-100℃
Work Humidity
0~98%RH
Output Interface
SMB
Length(mm)
58
Weight(g)
6.5
