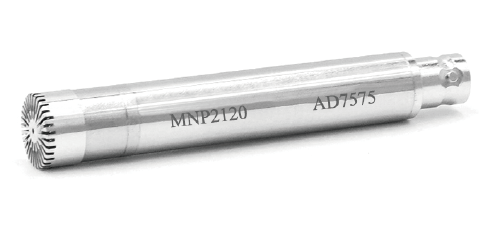

MNP2120

MNP2120 is a 1/2 inch prepoarized free field microphone that uses lEPE power supply and doesnot require polarizationvoltage.The preamplifier hcusing is made of stainless steelmaterial and is used to measure nedium sound pressurelevels at medium frequencies.

Performance parameter
Performance parameter
Type
MNP2120
Sensitivity(mV/Pa)
50
Frequency Range(Hz)
3.15~20k
Application
Free Field
Polarization Voltage (V)
0
Dynamic Range
17dB(A)~138dB
Work Temp(℃)
-30~+85
Output Interface
BNC
Power Supply
IEPE(2~20mA)
Length(mm)
85.4
Weight(g)
35
