System Introduction

The fault diagnosis and monitoring system mainly consists of various sensors, data acquisition instruments, and professional software. The sensors cover multiple aspects such as sound, vibration, and rotational speed, and can capture the operating status of the equipment. The data acquisition instrument, connected to the sensors, collects the raw data of the equipment in different application scenarios in real-time and transmits it to the software platform. The software system is responsible for in-depth analysis of these data, accurately identifying abnormal states, and issuing timely warning signals.

With its excellent performance and wide application range, this system is applicable to multiple fields such as industrial manufacturing, transportation, and energy industries, providing strong equipment safety guarantees for enterprises and facilitating efficient and stable production operations.

System Features

• Multiple Perception: It can connect various types of sensors such as sound, vibration, and rotational speed to collect multi-dimensional data of the equipment.

• Precise Measurement: High-resolution data acquisition instruments accurately measure high-fidelity sensor data.

• Real-time Analysis: Multi-dimensional data analysis to capture abnormal features and improve the accuracy and reliability of the analysis results.

• Real-time Warning: Early anomaly warning and timely fault alarm, notify relevant personnel through multiple means such as sound, light, and information to avoid economic losses.

Application Scenarios

• Industrial manufacturing: Monitoring of large machinery and rotating machinery, such as fans, motors, ball mills, etc.

• Transportation industry: Automobile NVH testing, monitoring of the operating status of rail trains, monitoring of train bogies, etc.

• Energy industry: Monitoring of wind turbines and steam turbines, such as blades, gearboxes, etc.

• Civil engineering: Monitoring of vehicle loads and wind loads on bridges, etc.

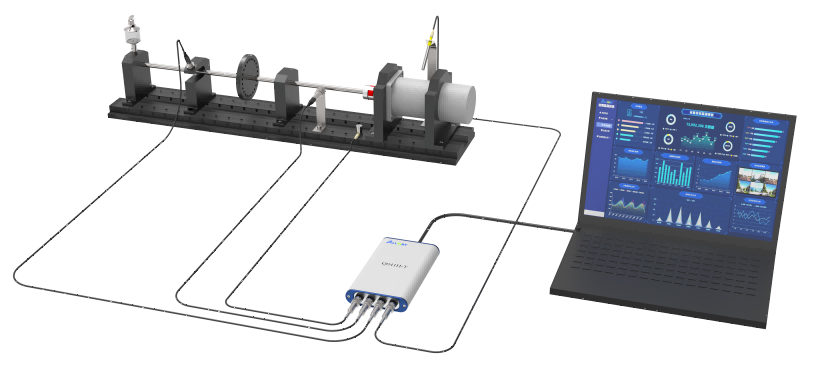

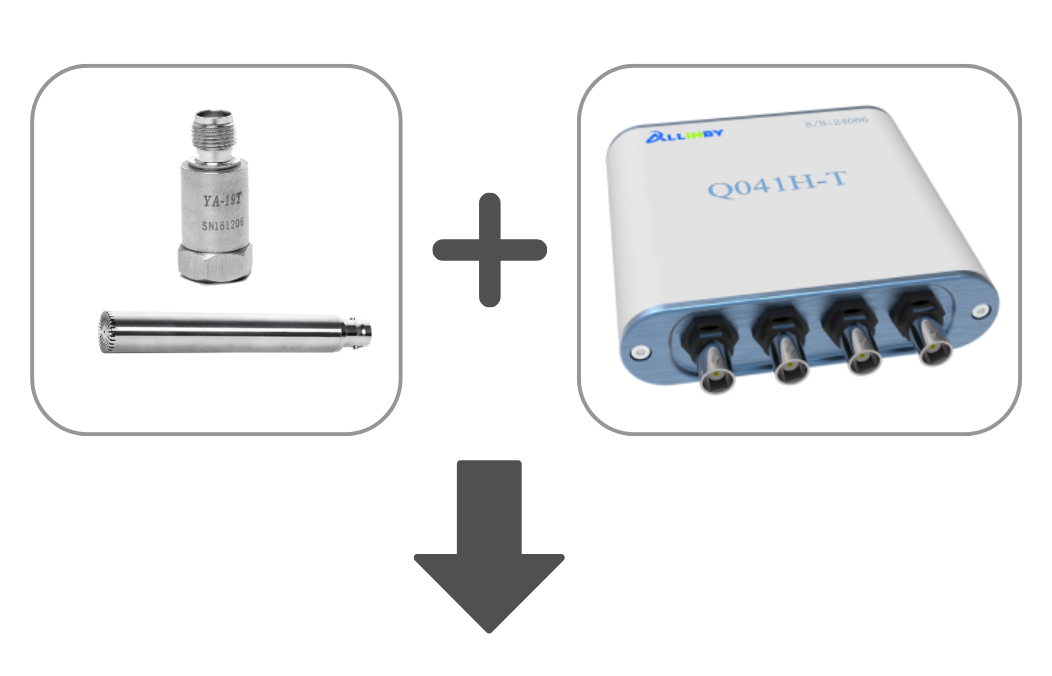

Product Picture
