MEMS DC Response Accelerometer

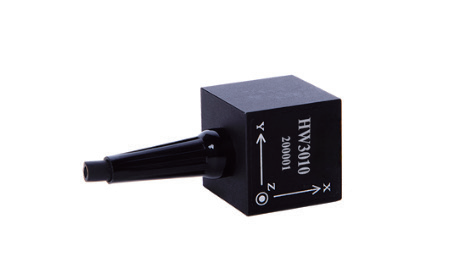

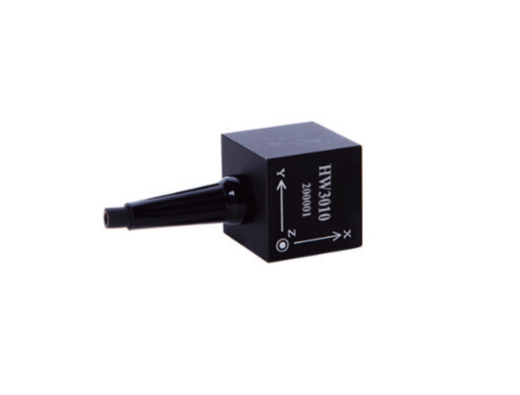

HW3010 accelerometer is a low noise density, low power consumption triaxial accelerometer that performs high- reso- lution vibration measurements with extremely low noise. The shell is made of hard aluminum alloy processed as a whole, which is lighter than traditional accelerometers. Adopting an overall wiring method for easy connection and installation.

Application Scenario
Application Scenario

·Structure health monitoring

·Status monitoring

·Tilt detection

Performance parameter
Performance parameter
Model
HW3010
Type
Triaxial
Measurement Range(mV/g)
135
Sensitivity(g)
±10
Frequency Range(Hz)
DC-3k
Resolution Accuracy((mg)
3.5
Output Interface
Side Venting
Material
Aluminium Alloy
Weight(g)
19
Size(mm)
20×20×20
Mounting
M5/glue
