High Sound Pressure Microphone

MN4229high sound pressure microphone is 1/4 inch prepolarized pressure field microphone that uses IEPE power  supply and does not require polarization voltage. The preamplifier housing is made of stainless steel material and is  suitable for pressure field environments such as in cavities, near hard reflective surfaces, or installed flush with hard  surfaces. The microphone adopts side pressure equalization method, which increases the maximum sound pressure  level of the microphone by increasing the membrane tension.

Performance parameter
Performance parameter
Type
MN4229
Sensitivity(mV/Pa)
0.1

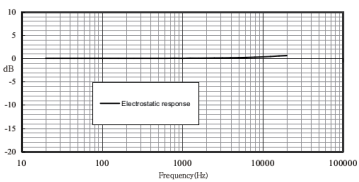

Frequency Range(Hz)
20~20k
Application
Pressure Field
Polarization Voltage (V)
0
Dynamic Range
59dB(A)-184dB
Work Temp(℃)
-30~+70
Output Interface
SMB
Power Supply
IEPE(2~20mA)
Length(mm)
67.8
Weight(g)
9
