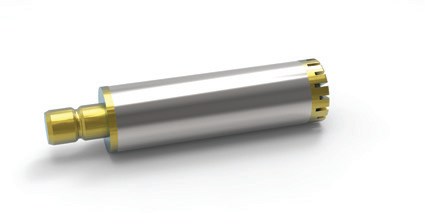

MP4023 array microphone

MP4023 array microphone is prepolarized free field measurement microphone with compact structure and length of only  30mm. The microphone and preamplifier adopt integrated design, and multiple microphones can form a microphone  array for identifying noise sources.

Performance parameter
Performance parameter
Type
MP4023
Sensitivity(mV/Pa)
12
Frequency Range (Hz)
20~20k
Application
Free Field
Polarization Voltage (V)
0
Dynamic Range
28dB(A)~130dB
Work Temp(℃)
-40~+50
Output Interface
SMB
Power Supply
IEPE (2~20mA)
Length(mm)
30
Weight(g)
3.4
