Conventional Accelerometer

QVT12050 and QVT32050 accelerometers are generally used for vibration testing of industrial equipment, using  piezo- electric crystal materials internally, which can provide excellent reliability and measurement range.


Application Scenario
Application Scenario

·Industrial equipment vibration monitoring;

·Universal vibration monitoring;

Performance parameter
Performance parameter

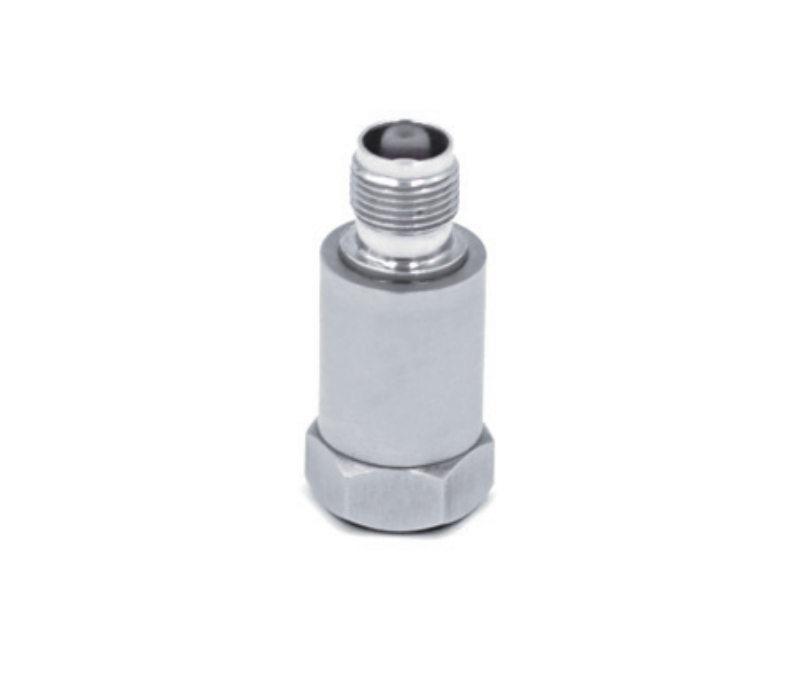

Model
QVT12050
Type
Uniaxial
Sensitivity(mV/g)
100
Measurement Range(g)
±50
Frequency Range(Hz)
0.2-10000
Resonant Frequency(kHz)
30
Output Interface
L5, Top
Material
Stainless Steel
Weight(g)
18
Size(mm)
Φ14×28
Mounting
M5
Performance parameter
Performance parameter

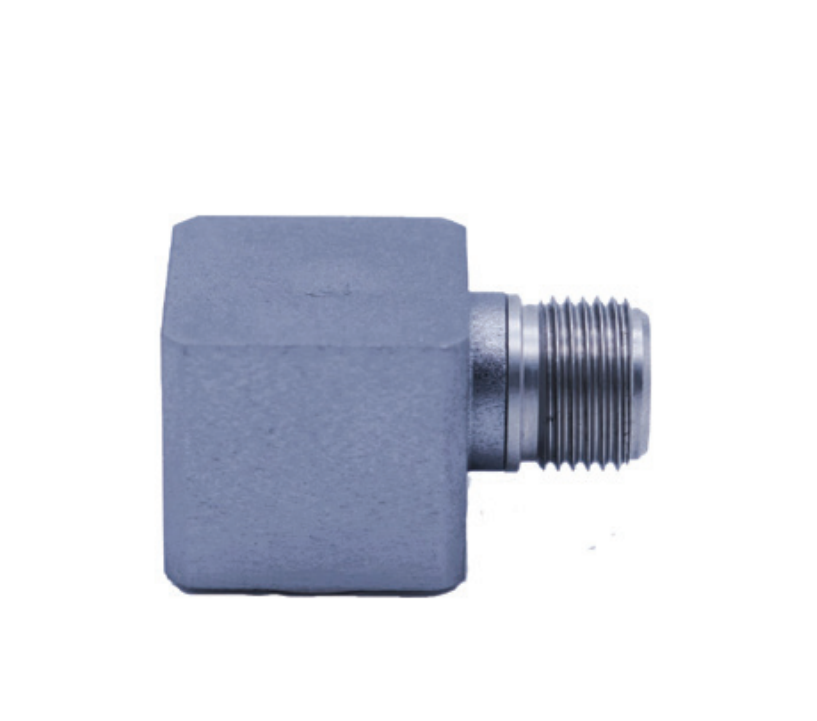

Model
QVT32050
Type
Triaxial
Sensitivity(mV/g)
100
Measurement Range(g)
±50
Frequency Range(Hz)
0.2-7000
Resonant Frequency(kHz)
10
Output Interface
M5
Material
Stainless Steel
Weight(g)
120
Size(mm)
30×30×20
Mounting
M5
